OHLINS S36P FRONT SHOCK ABSORBER PIAGGIO VESPA SPRINT 150 2017-23
Not the right product?
Go to collectionCheck compatibility before purchase
Check your motorcycle brand, model, year and version. If you have any doubts, we can help you verify the correct product.
Returns
Secure payments
Secure checkout with card, PayPal, bank transfer, Scalapay and HeyLight.
Couldn't load pickup availability
Descrizione
Descrizione

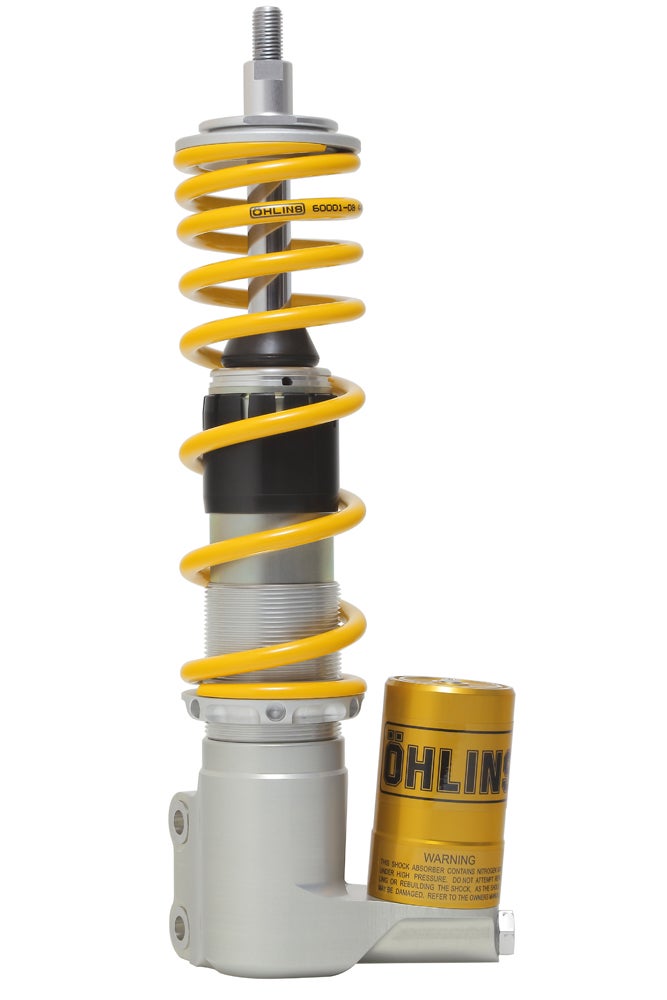

For PIAGGIO VESPA SPRINT 150 2017-23, part number PI 801 corresponds to the Öhlins front shock absorber S36P. It is a model-specific front-suspension configuration and should be selected by matching the application and part number exactly.
Motorcycle compatibility
| Motorcycle make | PIAGGIO |
| Motorcycle model | Vespa Sprint 150 ABS |
| Compatible years | 2017-23 |
| Position | Front |
Technical specifications
| Product brand | Öhlins |
| Product code / MPN | PI 801 |
| Line / technology | Öhlins Scooter STX 36 |
| Type code | S36P |
| Configuration | High-pressure gas monotube with piggy-back reservoir |
| Piston diameter | 36 mm |
| Shock absorber length | 263 mm |
| Stroke | 72 mm |
| Spring preload | Adjustable; dedicated tool included |
| Serviceability | Fully serviceable and repairable shock absorber |
STX 36 technology features
- Öhlins monotube design with high-pressure gas for more consistent suspension response.
- External piggy-back reservoir designed to aid temperature management during operation.
- 36 mm piston and precision CNC-machined components.
- Hard-anodized components and a shaft/seal system designed to reduce friction.
- Adjustable spring preload to tailor the setup to rider weight and riding needs.
- Fully serviceable product, helping maintain suspension performance over time.
Package contents
| Component | Part number | Qty |
| Öhlins shock absorber | PI 801 | 1 |
| M8x40 screw | 01046-21 | 2 |
| Öhlins sticker set | 10207-01 | 1 |
| Preload adjustment tool | 03199-03 | 1 |
| Owner's manual | 07421-02 | 1 |
Shock absorber type diagram
The Öhlins diagram helps interpret the shock absorber technical code and identify the suspension configuration.
Installation instructions
Öhlins recommends installation by qualified personnel. The specific PI 801 instructions state that, on some Vespa versions, it may be necessary to check or slightly modify the front mudguard to ensure correct clearance from the shock absorber. During installation, the procedures and tightening torques specified in the Vespa service manual and Öhlins instructions must also be followed.
Before purchase, always verify the model, year, ABS version and Öhlins code PI 801.
