ANDREANI MISANO EVO FORK CARTRIDGE MV AGUSTA F4/BRUTALE 1078 RR 2009
Not the right product?
Go to collectionCheck compatibility before purchase
Check your motorcycle brand, model, year and version. If you have any doubts, we can help you verify the correct product.
Returns
Secure payments
Secure checkout with card, PayPal, bank transfer, Scalapay and HeyLight.
Couldn't load pickup availability
Descrizione
Descrizione

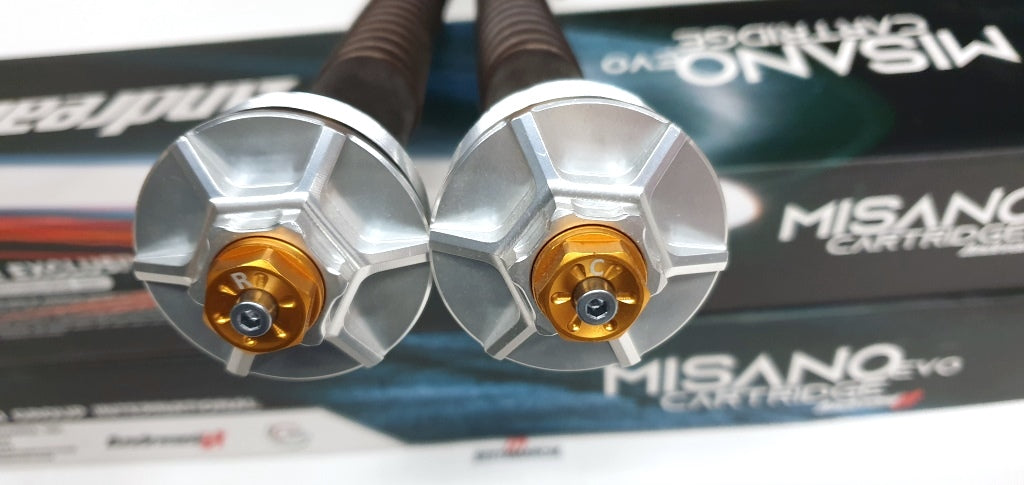

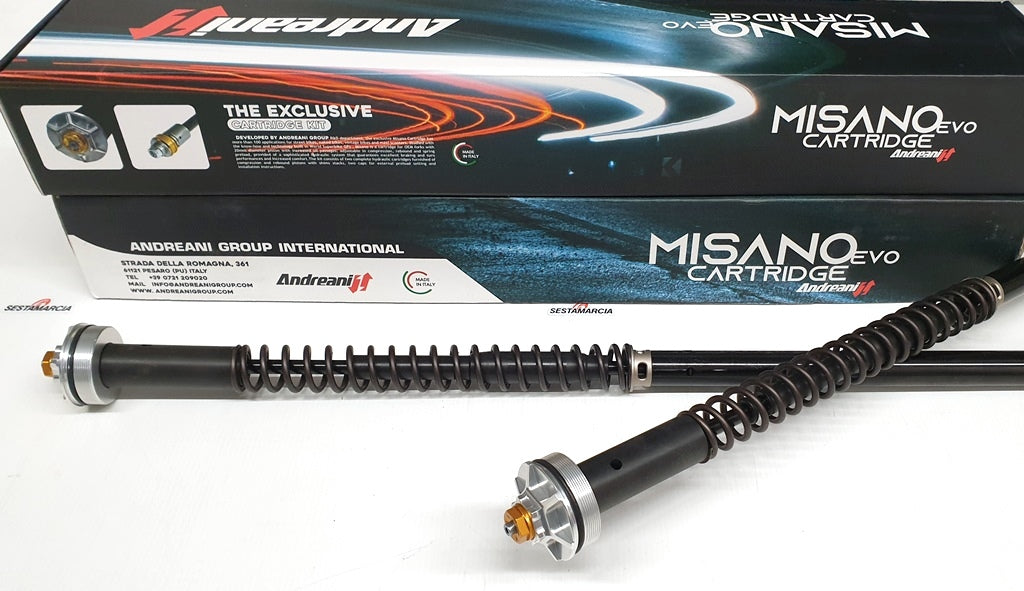

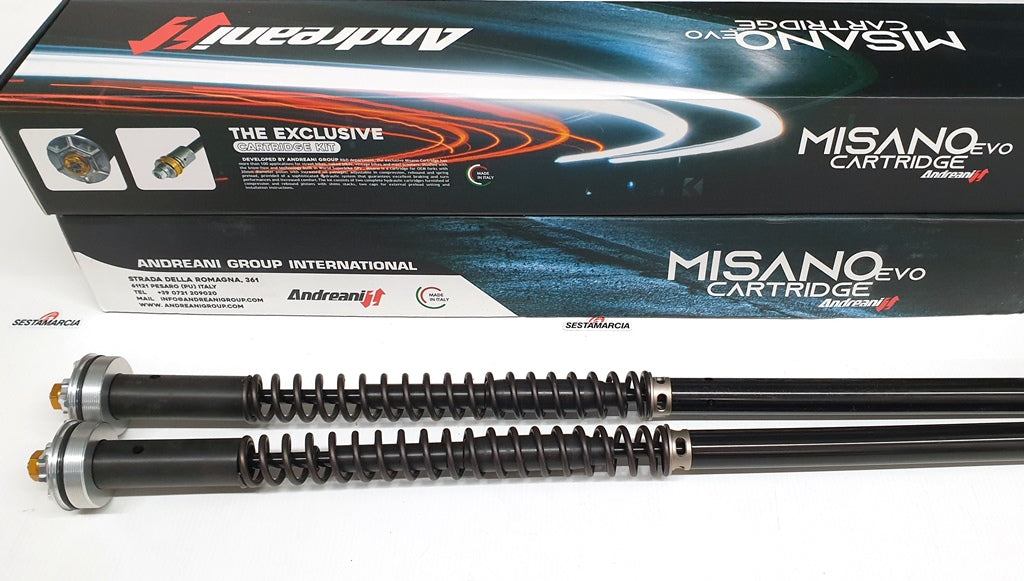

The Andreani MISANO EVO 105/M01E cartridge is intended for the MV Agusta F4 1078 2009 with a 50 mm Marzocchi fork. This Andreani configuration is specified for the application without fork-bottom adjustment, a detail that distinguishes it from part number 105/M02E used on other F4/Brutale configurations.
The kit replaces the original fork hydraulics with an adjustable cartridge using 20 mm pistons. Compression and rebound are adjustable, while spring preload allows the static support to be set correctly. Springs are included and can be matched to rider weight.
Technical data
| Andreani code | 105/M01E |
| Application | MV Agusta F4 1078 |
| Year | 2009 |
| Fork | Marzocchi 50 mm |
| Product line | MISANO EVO |
| Fork-bottom adjustment | No |
| Adjustments | Compression, rebound and preload |
| Springs | Included |
Part number 105/M01E also covers other MV Agusta applications, but this listing is built specifically for the F4 1078. Installation and setup require personnel specialized in motorcycle suspension systems.
