OHLINS REAR SHOCK S46DR1 APRILIA MANA 850 2012-13
Not the right product?
Go to collectionCheck compatibility before purchase
Check your motorcycle brand, model, year and version. If you have any doubts, we can help you verify the correct product.
Returns
Secure payments
Secure checkout with card, PayPal, bank transfer, Scalapay and HeyLight.
Couldn't load pickup availability
Descrizione
Descrizione

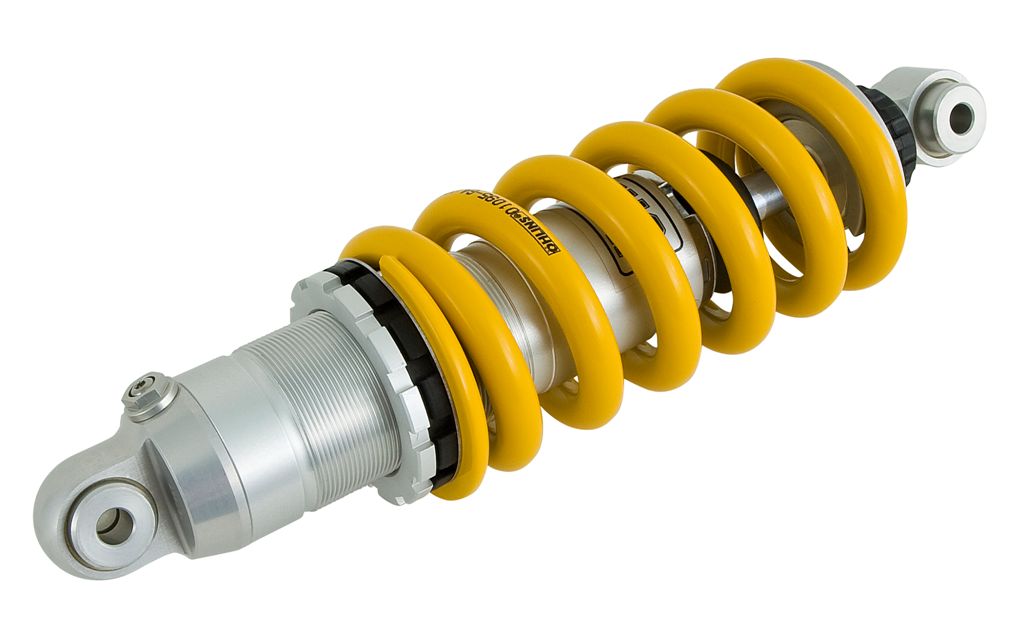

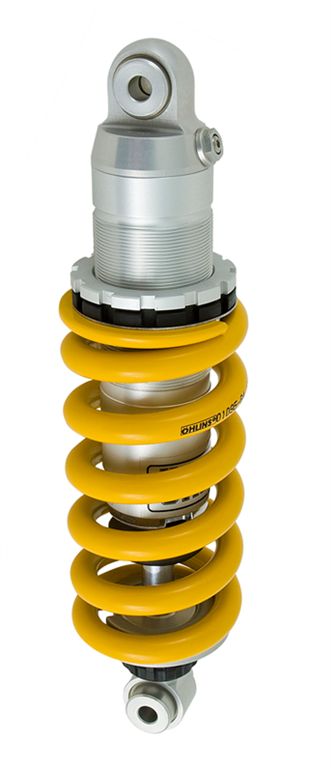

Intended for APRILIA MANA 850 2012-13, part number AG 1302 identifies the Öhlins rear shock absorber S46DR1. It is a model-specific rear-suspension configuration; the technical data and product reference should be used to confirm the correct fitment.
Spring included: the shock absorber is supplied with its spring included.
Quantity sold: 1 rear shock absorber.
Motorcycle compatibility
| Motorcycle make | Aprilia |
|---|---|
| Motorcycle model | Mana 850 |
| Compatible years | 2012-13 |
Technical specifications
| Product brand | Öhlins |
|---|---|
| Product code / SKU | AG 1302 |
| Type | Rear shock absorber |
| Öhlins type | S46DR1 |
| Listed length | 355.5 mm |
Technical configuration
- Traditional Öhlins architecture
- 46 mm body piston
- Internal separator; no compression adjustment indicated by the type code
- Single-speed rebound adjustment
Suspension setup
Setup should start from the values recommended for the application and be adapted to rider weight, load and use. After installation, check sag, freedom of movement and fastener torque before use.
